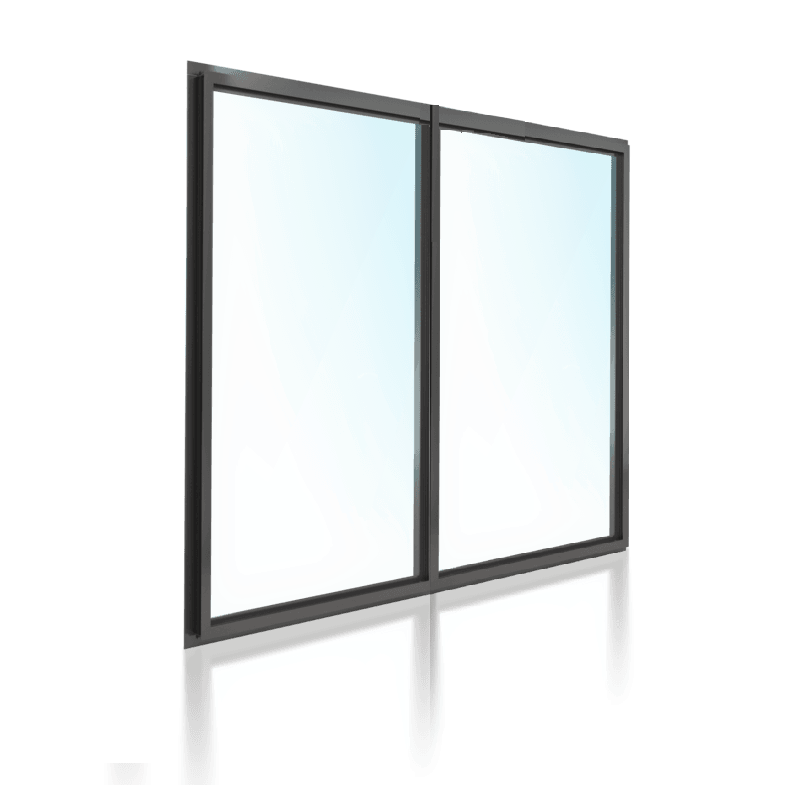

Fixed Window (2Pane) 1800 H x 2410 W

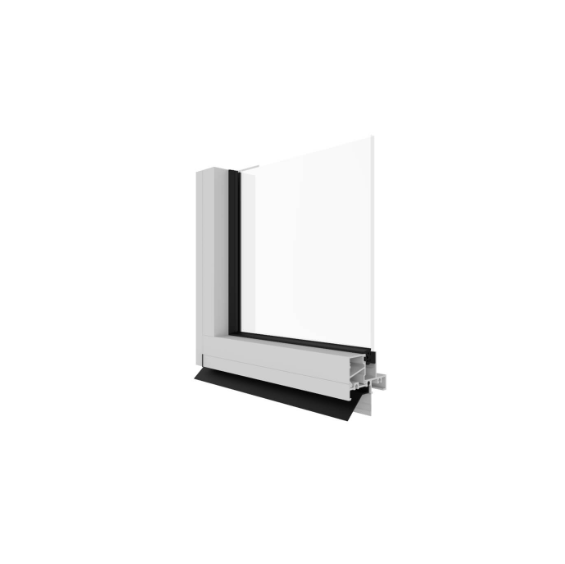

DESCRIPTION: The Fixed Light Window has been designed to provide a clean and streamlined appearance to complement the range of operable windows and doors.

Fixed light windows can be coupled to all windows within the residential range or used independently where openings are not required.

Frame the perfect view, maximise natural light and enjoy the great outdoors with an fixed light window to expand your view.

LEAD TIME: The majority of our products are made to order and delivery is approximately 15 working days from order. Some standard sized products in standard colours may be availed within 3 working days. Please contact us with your required items for confirmation.

KEY FEATURES

• 47mm & 79mm Standard Frame depths
• Single and double glazed options

• Integrated insect and security screening

• Restricted openings possible
• Standard black handle hardware

WHOLE WINDOW ENERGY PERFORMANCE

• Glass: 6mm Clear - U Value: 6.4 SHGC: 0.70
• Glass: 6mm Grey - U Value: 6.4 SHGC: 0.50

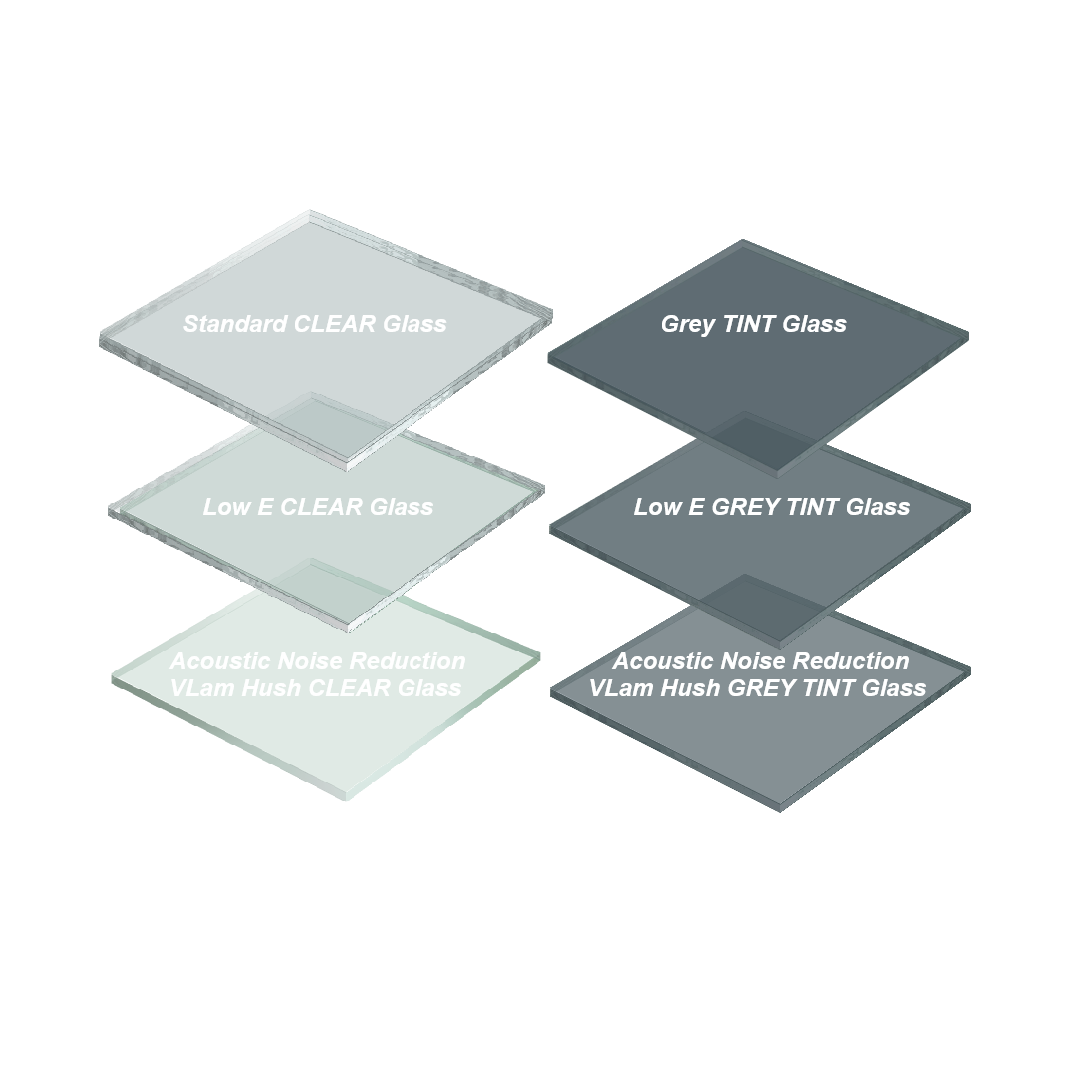

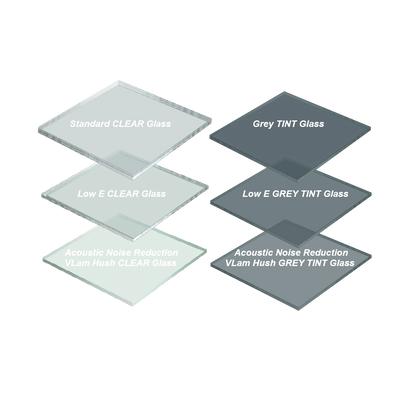

GLASS PERFORMANCE DATA

• Standard CLEAR Glass - U Value: 5.7 SHGC: 0.79
• GREY TINT Glass - U Value: 5.7 SHGC: 0.62
• Low E CLEAR Glass - U Value: 3.6 SHGC: 0.69
• Low E GREY TINT Glass - U Value: 3.6 SHGC: 0.50
• Acoustic Noise Reduction VLam Hush CLEAR Glass - U Value: 5.7 SHGC: 0.78
• Acoustic Noise Reduction VLam Hush GREY TINT Glass - U Value: 5.7 SHGC: 0.61

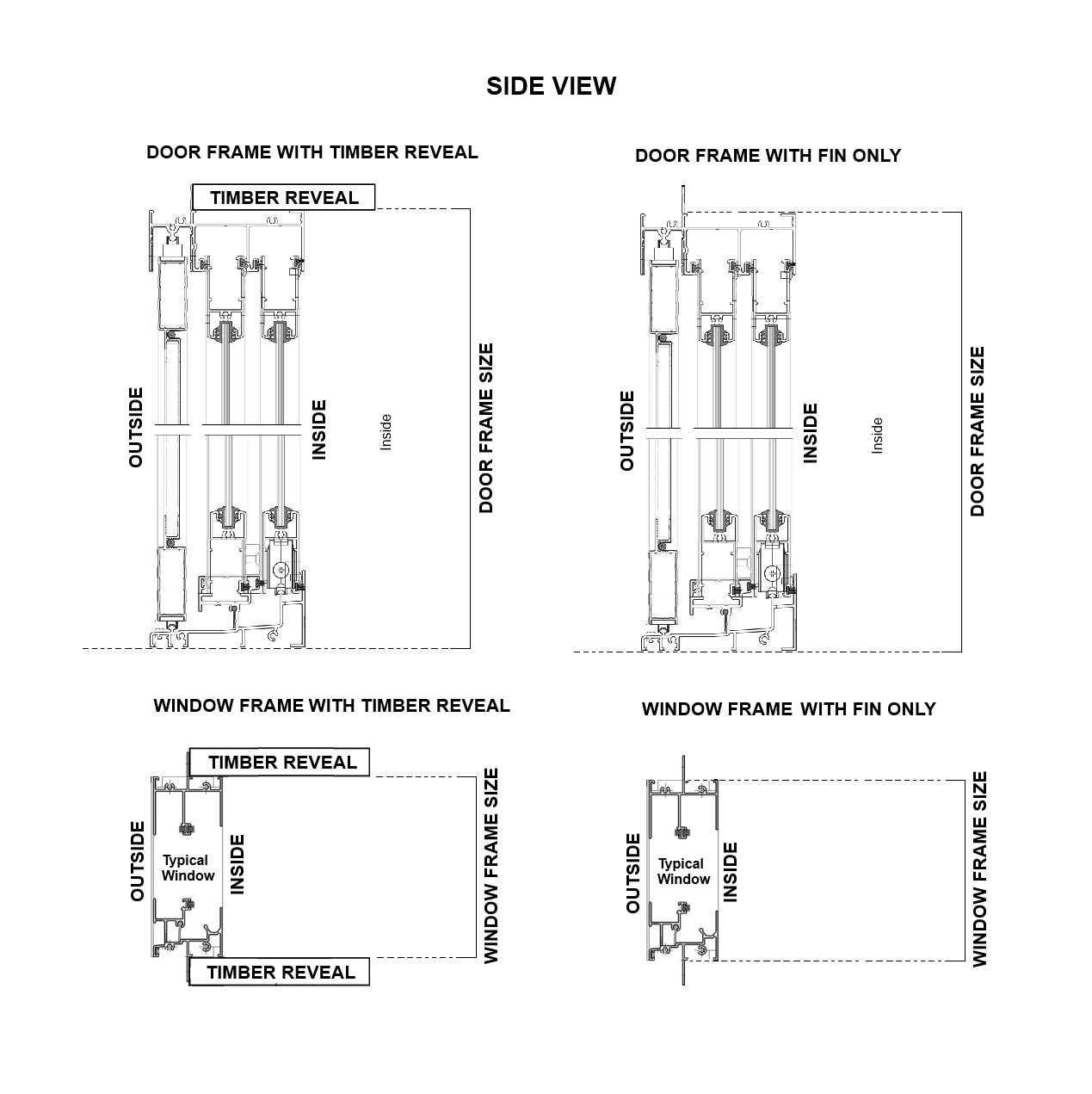

DOES YOUR WINDOW NEED TIMBER REVEALS?

A window reveal is used to fix the window itself into the stud wall frame. The main purpose of a reveal is to provide extra support to the aluminium frame of the window unit, no matter which types of reveals you choose. Mostly brick veneer wall structure or similar wall types will require a window reveal for installation. Alternatively you can order your window with a fin only that can be used for fixing or simply removed by snapping off if required.

Please note that all images are for illustrative purposes only and may not be an exact representation of the product.
