Aluminium Sliding Door
Sliding Door OX 2100 H x 2050 W
Sliding Door OX 2100 H x 2050 W
DESCRIPTION: The Sliding / Stacking Door has been designed to take advantage of the great outdoors to deliver that perfect alfresco environment.
Configurations of two, three and four-panel standard designs plus the added options of three or six-panel multi-stacking and corner entry options allow for a high degree of design flexibility.
The door’s excellent structural and weather performance is designed to suit Australia’s wide range of climate conditions.
Complemented with high-quality surface mounted hardware, integrated insect or barrier screening options and double glazing capabilities, the Stacking/Sliding Door can be tailored to your exacting requirements.
LEAD TIME: The majority of our products are made to order and delivery is approximately 15 working days from order. Some standard sized products in standard colours may be availed within 3 working days. Please contact us with your required items for confirmation.
KEY FEATURES

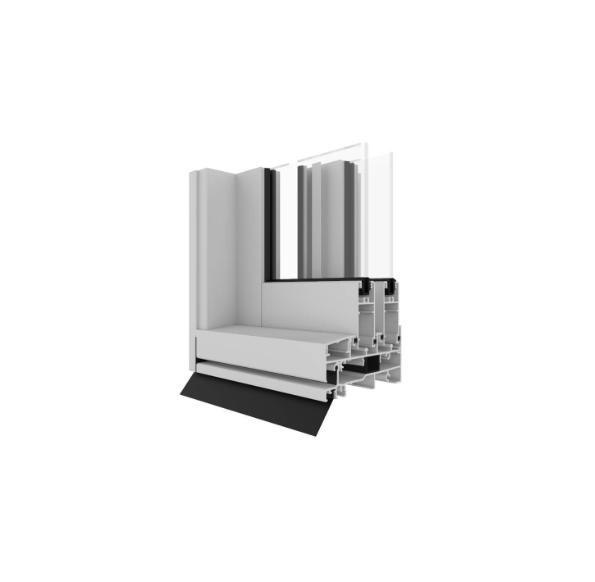

- 101.6mm & 158mm Standard Frame depths
- Single and double glazed options
- Available in standard, multi-stack configurations
- Integrated insect and security screening adaptors
- Standard and mortice lock options
- Bushfire tested to BAL 40.

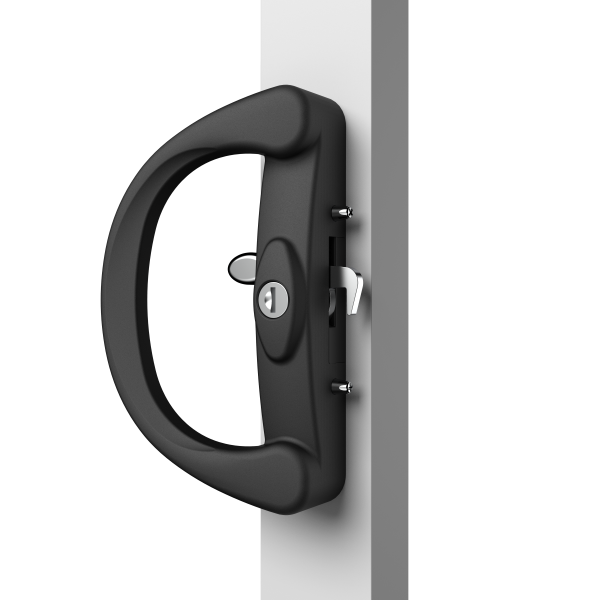

- Standard black handle hardware
WHOLE WINDOW ENERGY PERFORMANCE
- Glass: 6mm Clear - U Value: 6.0 SHGC: 0.69
- Glass: 6mm Grey - U Value: 6.0 SHGC: 0.49
GLASS PERFORMANCE DATA
- Standard CLEAR Glass - U Value: 5.7 SHGC: 0.79
- GREY TINT Glass - U Value: 5.7 SHGC: 0.62
- Low E CLEAR Glass - U Value: 3.6 SHGC: 0.69
- Low E GREY TINT Glass - U Value: 3.6 SHGC: 0.50
- Acoustic Noise Reduction VLam Hush CLEAR Glass - U Value: 5.7 SHGC: 0.78
- Acoustic Noise Reduction VLam Hush GREY TINT Glass - U Value: 5.7 SHGC: 0.61

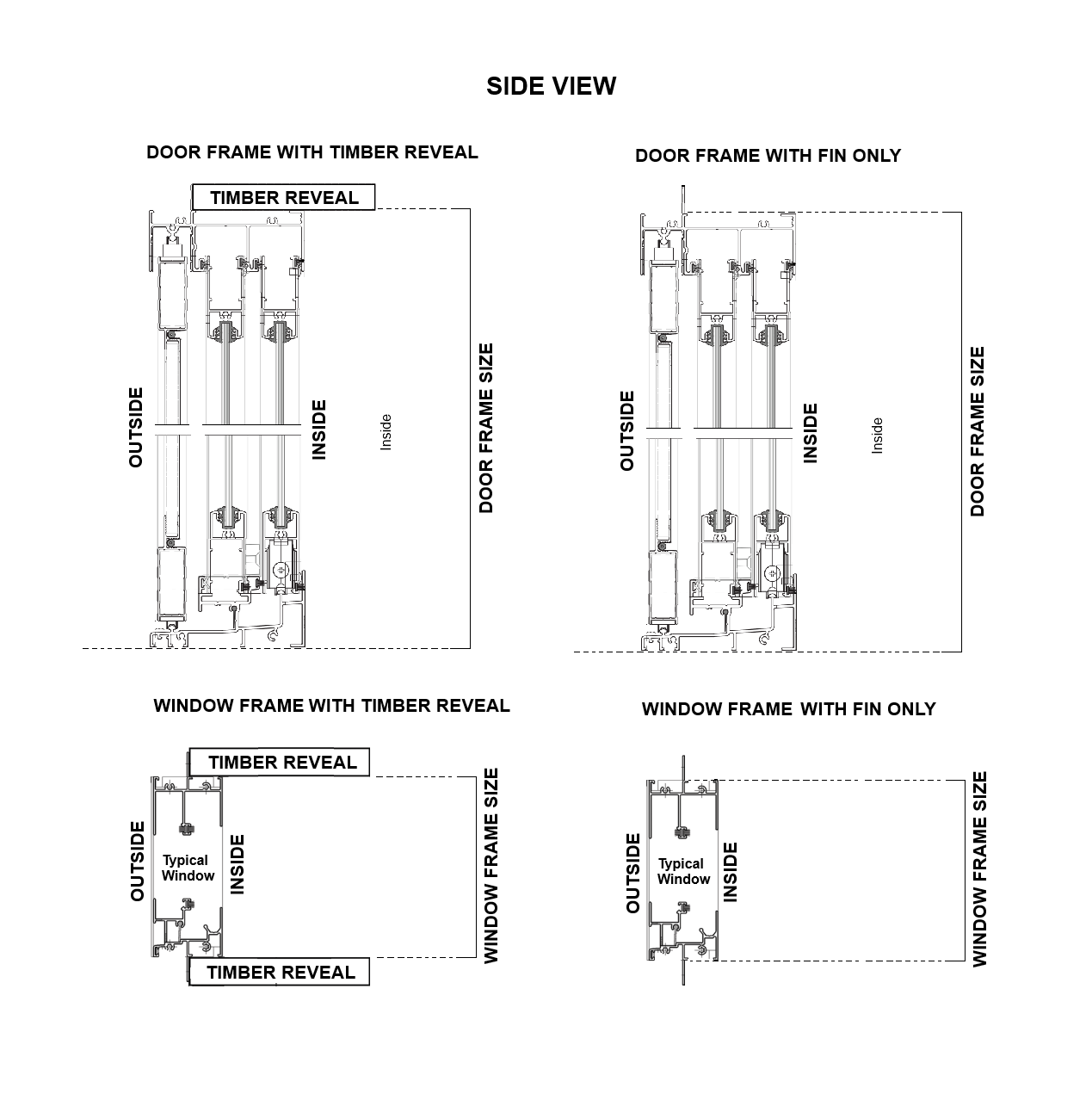

DOES YOUR WINDOW NEED TIMBER REVEALS?
A window reveal is used to fix the window itself into the stud wall frame. The main purpose of a reveal is to provide extra support to the aluminium frame of the window unit, no matter which types of reveals you choose. Mostly brick veneer wall structure or similar wall types will require a window reveal for installation. Alternatively you can order your window with a fin only that can be used for fixing or simply removed by snapping off if required.
Please note that all images are for illustrative purposes only and may not be an exact representation of the product.
